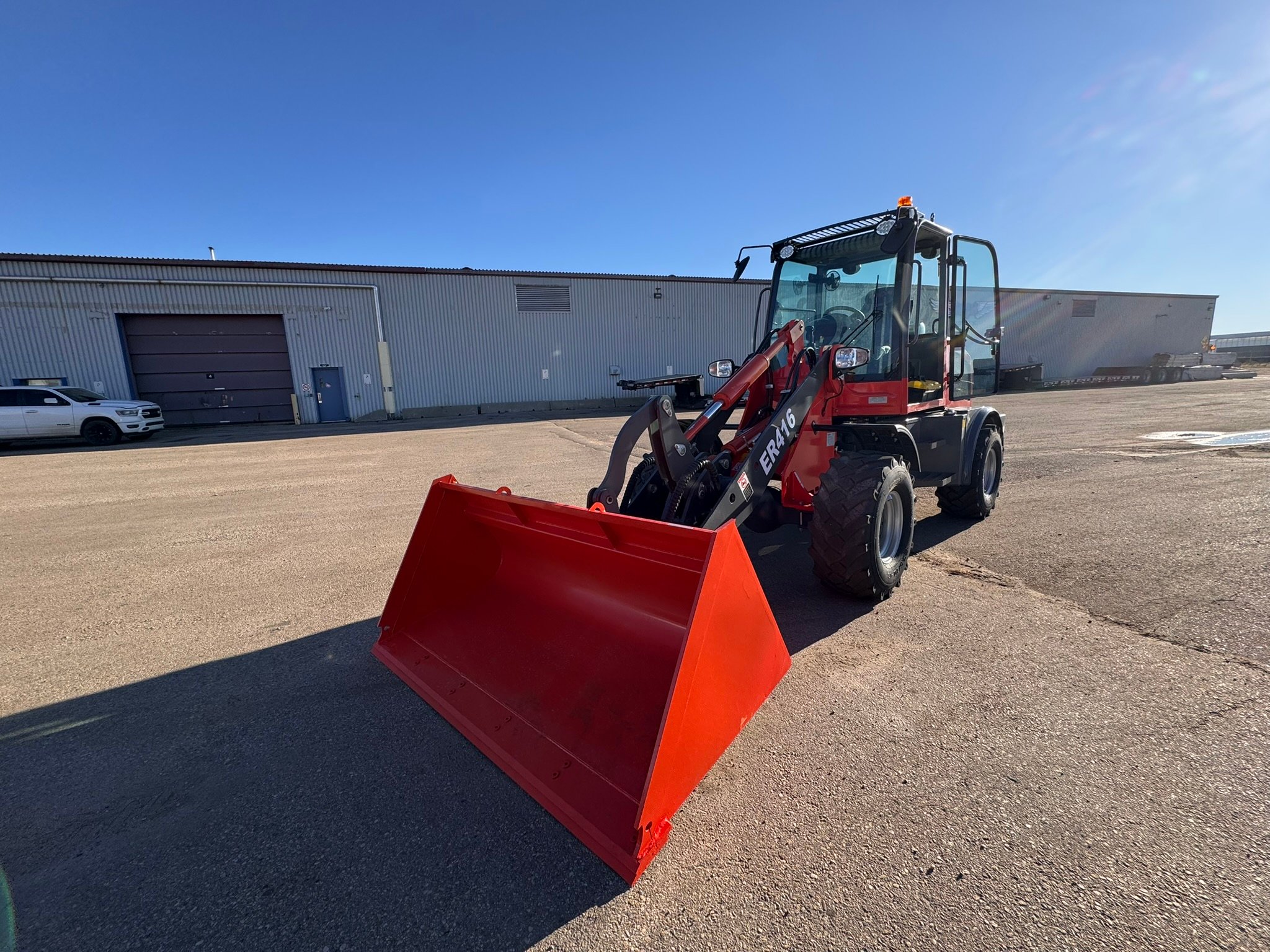

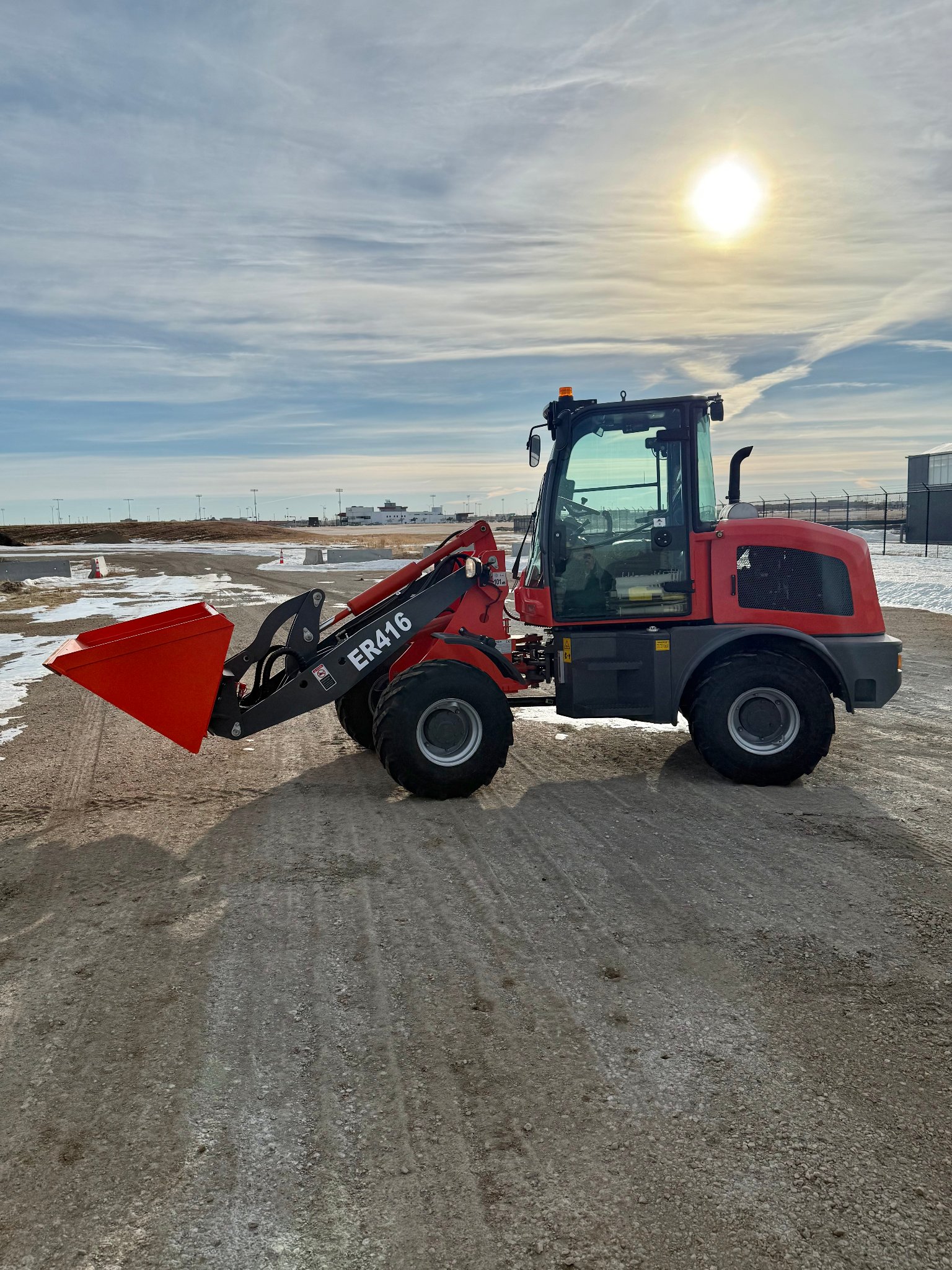

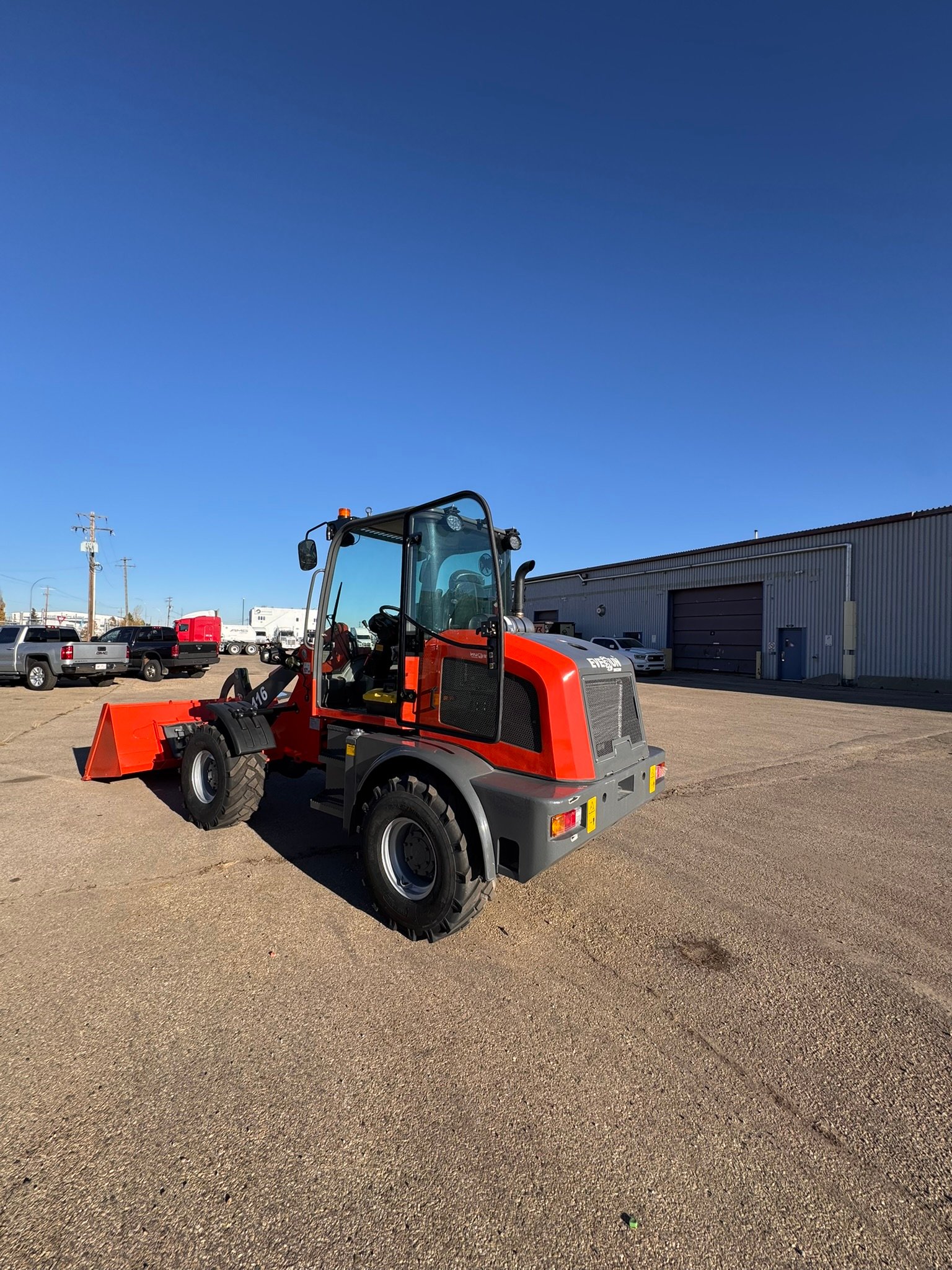

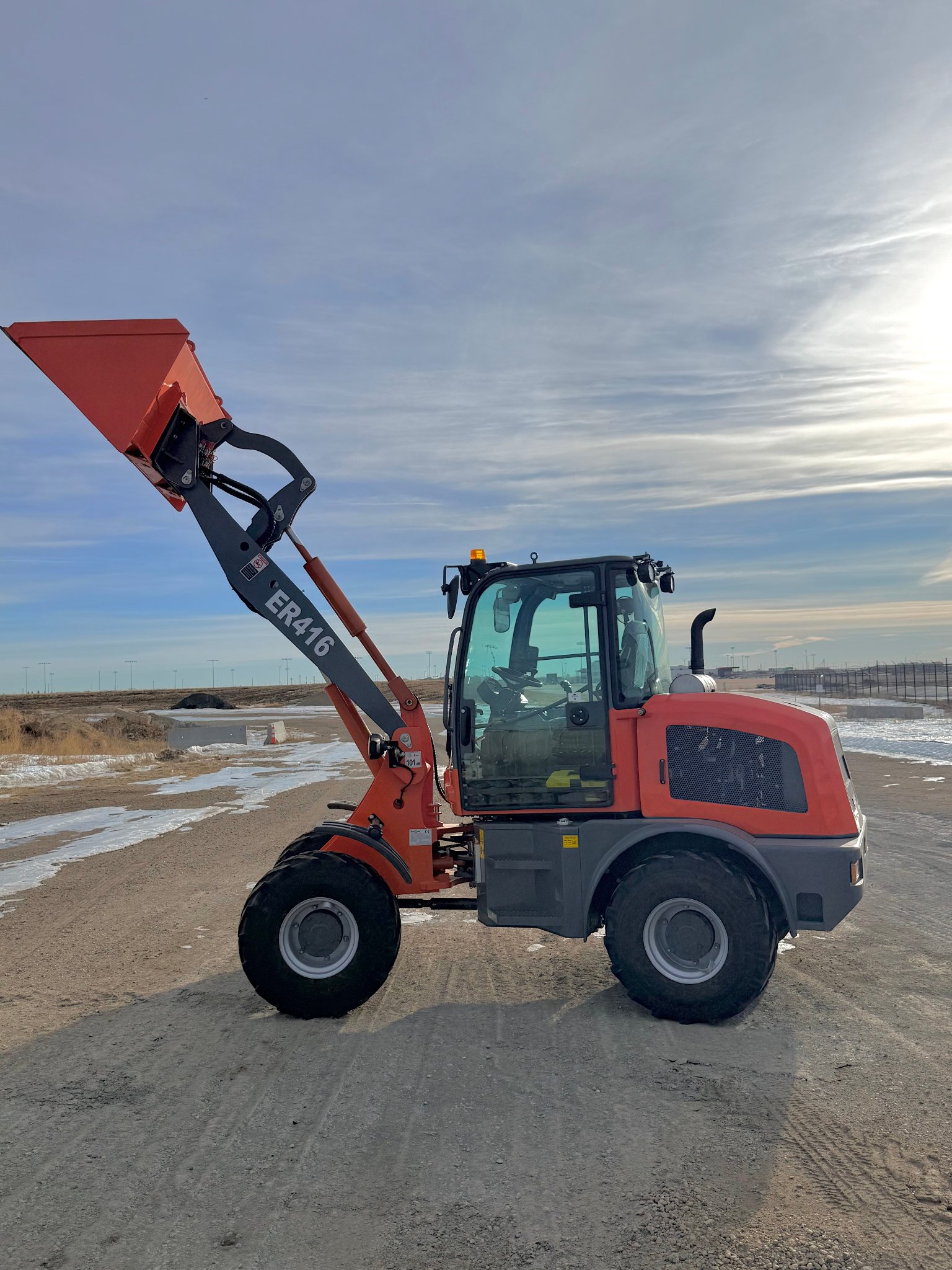

Wheel Loader
ER416
Mid-Range Workhorse
Balanced power and efficiency for general construction, agriculture, material yards, and municipal work. The versatile choice for diverse operations.
$48,900
+ GST
64 HP
Engine Power
9,700 lbs
Operating Weight
12.67 ft
Max Lift Height
3,527 lbs
Rated Load
Key Features
Balanced power and efficiency
Versatile attachment system
Comfortable operator environment
Reliable performance
Easy serviceability
Advanced hydraulics
Durable construction
Excellent visibility
Smooth operation
Low operating costs
Ideal Applications
General construction
Agriculture
Material yards
Municipal work
Landscaping
Aggregate handling
Need Help Choosing?
Our equipment specialists can help you determine if the ER416 is the right fit for your operation.
Technical Specifications
Engine
BrandCummins
Power64 HP (47.7 kW)
Rated Speed2,400 rpm
CertificationEuro 3 / EPA
Weight & Dimensions
Operating Weight9,700 lbs (4,400 kg)
Rated Load3,527 lbs (1,600 kg)
Overall (L×W×H)5267×1850×2535 mm
Tires23.5/70-15 Ag
Performance
Max Lift Height12.67 ft
Max Lifting Height12.67 ft
Max Dump Height8.0 ft
Max Breakout Force28 kN
Steering & Brakes
SteeringArticulated Hydraulic
Min. Turning Radius4,451 mm
Service BrakeAir-assist Disc
Wheelbase1,520 mm
Request a Quote for the ER416
Get pricing, financing options, and delivery information for this model.
